Type definitions. More...

#include "AppCfg.h"
#include "Types/TaskTypes.h"
#include "Types/ResourceTypes.h"
#include "Types/EventTypes.h"
#include "Types/CounterTypes.h"
#include "Types/AlarmTypes.h"
#include "Types/ErrorTypes.h"
#include "Types/ScheduleTableTypes.h"

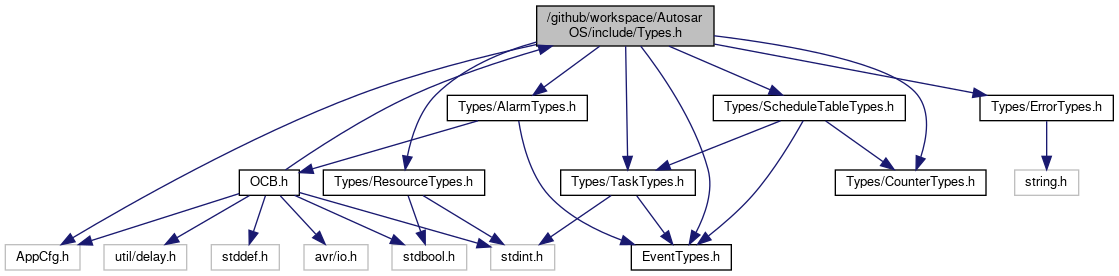

Include dependency graph for Types.h:

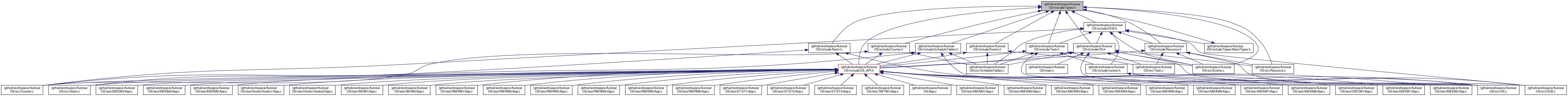

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	OS_CONFIG_GEN_ENUM

#define	ISR(Name) extern void Func ## Name(void)
	Define implementation for interrupt service routine. More...

Typedefs
typedef enum StatusType_e	StatusType
	Type for status. More...

typedef enum ProtectionReturnType_e	ProtectionReturnType
	Return type for protection hook. More...

typedef enum applicationMode_e	AppModeType
	Type for application mode. More...

Enumerations
enum	StatusType_e { E_OK = 0, E_OS_ACCESS, E_OS_CALLLEVEL, E_OS_ID, E_OS_LIMIT, E_OS_NOFUNC, E_OS_RESOURCE, E_OS_STATE, E_OS_VALUE, E_OS_STACKFAULT, E_OS_PARAM_POINTER, E_OS_PROTECTION_ARRIVAL }
	Type for status. More...

enum	ProtectionReturnType_e { PRO_IGNORE, PRO_TERMINATETASKISR, PRO_TERMINATEAPPL, PRO_TERMINATEAPPL_RESTART, PRO_SHUTDOWN }
	Return type for protection hook. More...

enum	applicationMode_e { OSDEFAULTAPPMODE }
	Type for application mode. More...

Detailed Description

Type definitions.

Date: 2019-09-10

Author: Pascal Romahn

Copyright: This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

Definition in file Types.h.

Macro Definition Documentation

◆ ISR

#define ISR ( Name ) extern void Func ## Name(void)

Define implementation for interrupt service routine.

Definition at line 34 of file Types.h.

◆ OS_CONFIG_GEN_ENUM

#define OS_CONFIG_GEN_ENUM

Definition at line 18 of file Types.h.

Typedef Documentation

◆ AppModeType

typedef enum applicationMode_e AppModeType

Type for application mode.

◆ ProtectionReturnType

typedef enum ProtectionReturnType_e ProtectionReturnType

Return type for protection hook.

◆ StatusType

typedef enum StatusType_e StatusType

Type for status.

Enumeration Type Documentation

◆ applicationMode_e

enum applicationMode_e

Type for application mode.

Enumerator
OSDEFAULTAPPMODE

Definition at line 68 of file Types.h.

◆ ProtectionReturnType_e

enum ProtectionReturnType_e

Return type for protection hook.

Enumerator
PRO_IGNORE	Ignore protection error.
PRO_TERMINATETASKISR	Terminate faulty task or ISR.
PRO_TERMINATEAPPL	Terminate faulty OS application.
PRO_TERMINATEAPPL_RESTART	Terminate and restart faulty OS application.
PRO_SHUTDOWN	Shutdown system.

Definition at line 57 of file Types.h.

◆ StatusType_e

enum StatusType_e
