ScheduleTables.h File Reference

Schedule tables management. More...

#include "Types.h"

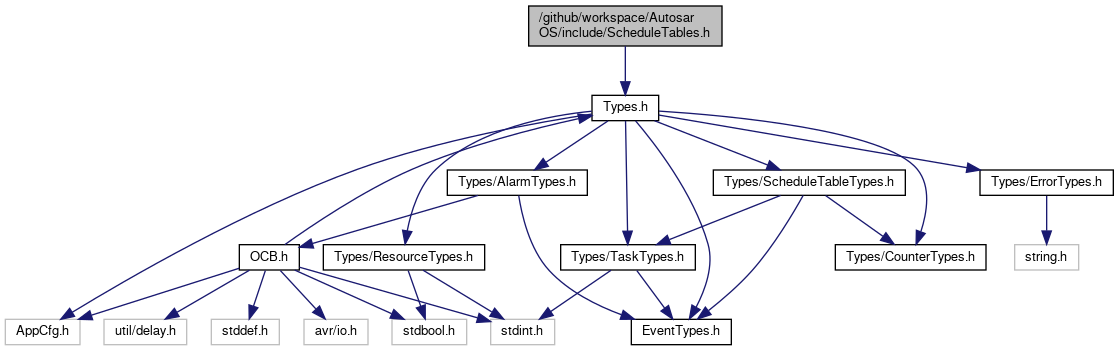

Include dependency graph for ScheduleTables.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
StatusType	ScheduleTable_StartScheduleTableRel (ScheduleTableType scheduleTableID, TickType offset)
	Start schedule table from relative offset. More...
StatusType	ScheduleTable_StartScheduleTableAbs (ScheduleTableType scheduleTableID, TickType start)
	Start schedule table from absolute start. More...
StatusType	ScheduleTable_StopScheduleTable (ScheduleTableType scheduleTableID)
	Stop schedule table. More...
StatusType	ScheduleTable_NextScheduleTable (ScheduleTableType scheduleTableID_from, ScheduleTableType scheduleTableID_to)
	Queue schedule table. More...
StatusType	ScheduleTable_GetScheduleTableStatus (ScheduleTableType scheduleTableID, ScheduleTableStatusRefType scheduleStatus)
	Get schedule table status. More...
void	ScheduleTable_handleTick (CounterType counter)
	Handle tick. More...
void	ScheduleTable_handleSysTick (void)
	Handle system tick. More...
void	ScheduleTable_startup (void)
	Startup function for schedule table management. More...

Detailed Description

Schedule tables management.

Date

2020-06-25

Author

Pascal Romahn

Copyright

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

Definition in file ScheduleTables.h.

Function Documentation

ScheduleTable_GetScheduleTableStatus()

StatusType ScheduleTable_GetScheduleTableStatus	(	ScheduleTableType	scheduleTableID,
		ScheduleTableStatusRefType	scheduleStatus
	)

Get schedule table status.

Get current status of a schedule table.

Parameters

scheduleTableID	ID of schedule table
scheduleStatus	Reference to status

Returns

E_OK No error
E_OS_ID Invalid schedule table ID
E_OS_PARAM_POINTER Pointer parameter is invalid

Definition at line 218 of file ScheduleTables.c.

ScheduleTable_handleSysTick()

void ScheduleTable_handleSysTick

(

void

)

Handle system tick.

Calls ScheduleTable_handleTick() where counter equals SYSTEM_COUNTER. This only exists to simplify the function call within the SysTick interrupt.

Definition at line 338 of file ScheduleTables.c.

Here is the call graph for this function:

ScheduleTable_handleTick()

void ScheduleTable_handleTick

(

CounterType

counter

)

Handle tick.

Handles a tick of the specified counter. This will increment all associated schedule tables and handle expiry points if necessary.

Parameters

counter

ID of the counter that triggered the tick

Definition at line 248 of file ScheduleTables.c.

Here is the caller graph for this function:

ScheduleTable_NextScheduleTable()

StatusType ScheduleTable_NextScheduleTable	(	ScheduleTableType	scheduleTableID_from,
		ScheduleTableType	scheduleTableID_to
	)

Queue schedule table.

Queue schedule table to be executed after the current schedule table finishes execution. If a there is already a next schedule table configured it will be replaced.

Both schedule tables must be driven by the same counter.

Parameters

scheduleTableID_from	ID of current schedule table
scheduleTableID_to	ID of schedule table to be queued

Returns

E_OK No error
E_OS_ID Invalid schedule table IDs or counters not matching
E_OS_NOFUNC Current schedule table is not started
E_OS_STATE Schedule table to be queued is not stopped

Definition at line 174 of file ScheduleTables.c.

ScheduleTable_StartScheduleTableAbs()

StatusType ScheduleTable_StartScheduleTableAbs	(	ScheduleTableType	scheduleTableID,
		TickType	start
	)

Start schedule table from absolute start.

Start the schedule table from an absolute starting point. The first expiry point will be executed at start + offset of first expiry point tick value of the underlaying counter.

Start must be below or equal MaxAllowedValue of the underlying counter.

Parameters

scheduleTableID	ID of the schedule table to start
start	Start value in ticks

Returns

E_OK No error
E_OS_ID Invalid schedule table ID
E_OS_VALUE Value of start is invalid
E_OS_STATE Schedule table was already started

Definition at line 116 of file ScheduleTables.c.

Here is the call graph for this function:

ScheduleTable_StartScheduleTableRel()

StatusType ScheduleTable_StartScheduleTableRel	(	ScheduleTableType	scheduleTableID,
		TickType	offset
	)

Start schedule table from relative offset.

Start schedule table from relative offset. The first expiry point will be executed in offset + offset of first expiry point ticks of the underlying counter.

Offset must be greater than zero and smaller or equal MaxAllowedValue of the underlying counter.

Parameters

scheduleTableID	ID of the schedule table to start
offset	Offset in Ticks before the schedule table is executed

Returns

E_OK No error
E_OS_ID Invalid schedule table ID
E_OS_VALUE Value of offset is invalid
E_OS_STATE Schedule table was already started

Definition at line 79 of file ScheduleTables.c.

Here is the caller graph for this function:

ScheduleTable_startup()

void ScheduleTable_startup

(

void

)

Startup function for schedule table management.

This function starts all schedule tables configured as autostart and handles expiry points if necessary.

Definition at line 343 of file ScheduleTables.c.

ScheduleTable_StopScheduleTable()

StatusType ScheduleTable_StopScheduleTable

(

ScheduleTableType

scheduleTableID

)

Stop schedule table.

Stop execution of the schedule table.

Parameters

scheduleTableID

ID of the schedule table to stop

Returns

E_OK No error
E_OS_ID Invalid schedule table ID
E_OS_NOFUNC Schedule table was already stopped

Definition at line 147 of file ScheduleTables.c.
