Implementation of operating system control functions. More...

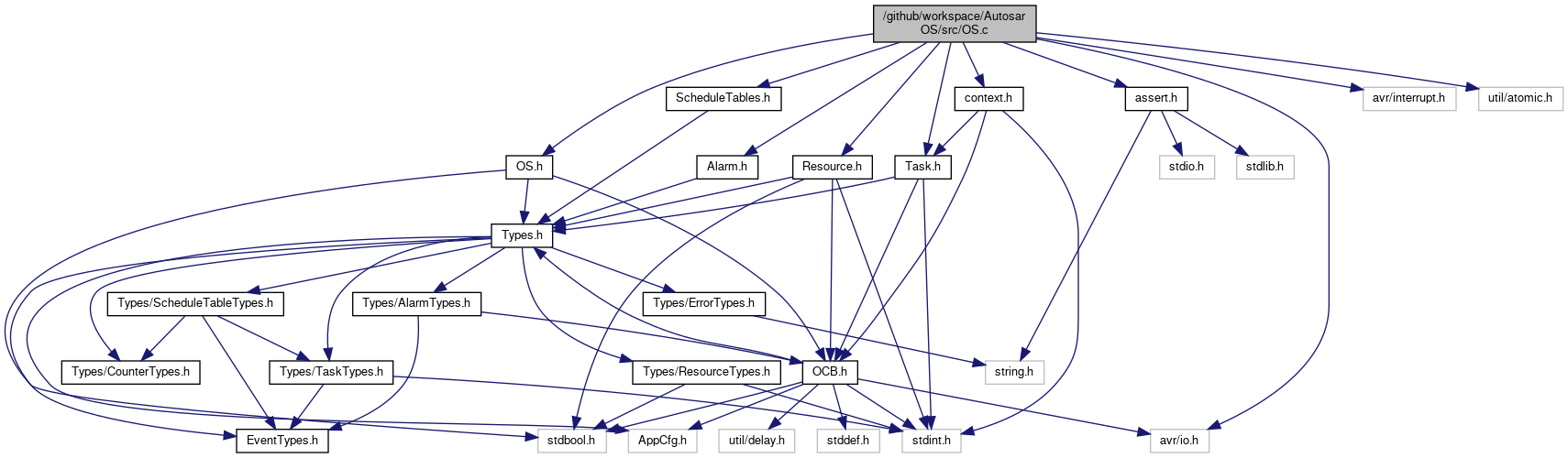

#include "OS.h"#include "assert.h"#include "context.h"#include "Task.h"#include "Resource.h"#include "ScheduleTables.h"#include "Alarm.h"#include <avr/io.h>#include <avr/interrupt.h>#include <util/atomic.h>
Go to the source code of this file.
Functions | |
| void | OS_StartOS (AppModeType mode) |
| Start operating system. More... | |
| void | OS_ShutdownOS (StatusType error) |
| Shutdown operating system. More... | |
| void | __attribute__ ((naked)) |
| Task switch. More... | |
| void | OS_Switch (void) |
| Switch to new task. More... | |
| void | OS_EnableAllInterrupts (void) |
| Enable all interrupts. More... | |
| void | OS_DisableAllInterrupts (void) |
| Disable all interrupts. More... | |
| void | OS_ResumeAllInterrupts (void) |
| Resume all interrupts. More... | |
| void | OS_SuspendAllInterrupts (void) |
| Suspend all interrupts. More... | |
| void | OS_ResumeOSInterrupts (void) |
| Resume OS interrupts. More... | |
| void | OS_SuspendOSInterrupts (void) |
| Suspend OS interrupts. More... | |
| AppModeType | OS_GetActiveApplicationMode (void) |
| Get currently active application mode. More... | |
| void | OS_ProtectionHookInternal (StatusType error) |
| Internal function for protection hook handling. More... | |
| void | OS_ShutdownOSStackOverrun (void) |
| Call OS_ShutdownOS() with E_OS_STACKFAULT. More... | |
Variables | |
| uint8_t *volatile * | ptrCurrentStack |
| Stack-Pointer saved in current task control block. More... | |
| pTaskFxn | ptrCurrentFxnAddr |
| Function pointer to current task function. More... | |
Detailed Description
Implementation of operating system control functions.
- Date
- 2019-09-02
- Copyright
- This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.
Definition in file OS.c.
Function Documentation

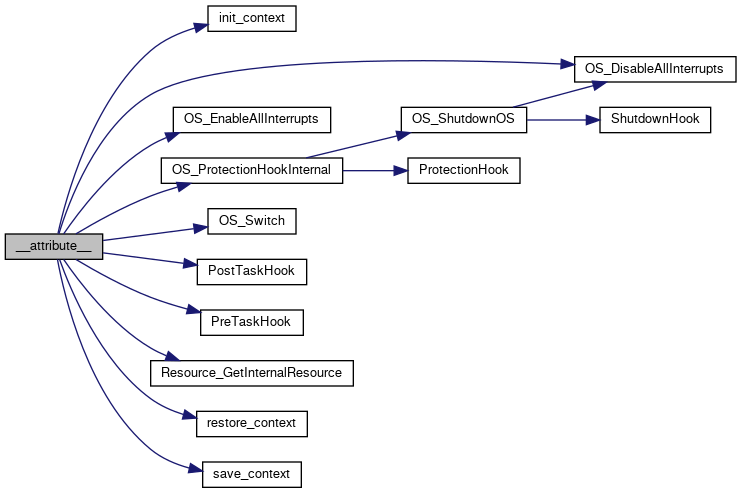

◆ __attribute__()
| void __attribute__ | ( | (naked) | ) |
Task switch.
This function performs the actual scheduling. It selects a new task to be executed and switches the current context accordingly. It should not be called directly and instead be used with OS_Schedule().
Definition at line 143 of file OS.c.

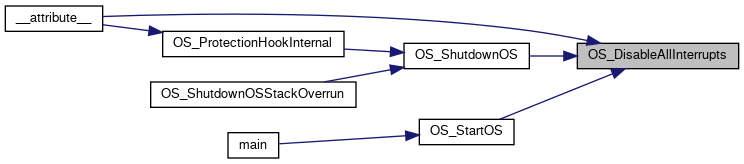

◆ OS_DisableAllInterrupts()
|
inline |
Disable all interrupts.
This service disables all interrupts. It is the counterpart to OS_EnableAllInterrupts().
Nesting is not supported by this call.
Definition at line 256 of file OS.c.
◆ OS_EnableAllInterrupts()
|
inline |
Enable all interrupts.
This service enables all interrupts. It is the counterpart to OS_DisableAllInterrupts().
Nesting is not supported by this call.
Definition at line 251 of file OS.c.
◆ OS_GetActiveApplicationMode()
| AppModeType OS_GetActiveApplicationMode | ( | void | ) |

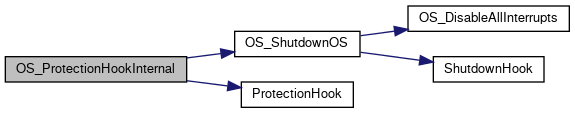

◆ OS_ProtectionHookInternal()
| void OS_ProtectionHookInternal | ( | StatusType | error | ) |
Internal function for protection hook handling.
This function is called when a protection error is detected. It will call the configured protection hook if available and handle its return value.
- Parameters
-
error Type of error that triggered the protection hook
Definition at line 310 of file OS.c.
◆ OS_ResumeAllInterrupts()
| void OS_ResumeAllInterrupts | ( | void | ) |
Resume all interrupts.
This service resumes all interrupts disabled by the previous call to OS_SuspendAllInterrupts().
Nesting is supported by this call.
◆ OS_ResumeOSInterrupts()
| void OS_ResumeOSInterrupts | ( | void | ) |
Resume OS interrupts.
This service resumes OS interrupts disabled by the privious call to OS_SuspendOSInterrupts().
Nesting is supported by this call.
- Note
- Because of hardware limitations there is no difference between this function and OS_ResumeAllInterrupts(). However the correct counterpart must be used.
- Warning
- Nesting is only supported up to 8 levels!
◆ OS_ShutdownOS()
| void OS_ShutdownOS | ( | StatusType | error | ) |
Shutdown operating system.
This service shuts down the operating system and does not return. If a ShutdownHook is configured it will be called before the system is terminated.
- Parameters
-
error Error occurred
Definition at line 128 of file OS.c.
◆ OS_ShutdownOSStackOverrun()
| void OS_ShutdownOSStackOverrun | ( | void | ) |
Call OS_ShutdownOS() with E_OS_STACKFAULT.
This function will simply call OS_ShutdownOS() with E_OS_STACKFAULT. This is mainly used to simplify the function call from the the sysTick timer ISR.
Definition at line 391 of file OS.c.
◆ OS_StartOS()
| void OS_StartOS | ( | AppModeType | mode | ) |
Start operating system.
This service starts the operating system in the specified application mode. The default application mode is OSDEFAULTAPPMODE.
- Note
- Calls to this functions are only allowed outside of the operating system. This call does not return.
- This implementation only supports the default mode.
- Parameters
-
mode Application mode
Definition at line 91 of file OS.c.
◆ OS_SuspendAllInterrupts()
| void OS_SuspendAllInterrupts | ( | void | ) |
Suspend all interrupts.
This service suspends all interrupts. It is the counterpart to OS_ResumeAllInterrupts().
Nesting is supported by this call
◆ OS_SuspendOSInterrupts()
| void OS_SuspendOSInterrupts | ( | void | ) |
Suspend OS interrupts.
This service suspends all OS interrupts. It is the counterpart to OS_ResumeOSInterrupts().
Nesting is supported by this call.
- Note
- Because of hardware limitation there is no difference between this function and OS_SuspendAllInterrupts(). However the correct counterpart must be used.
- Warning
- Nesting is only supported up to 8 levels!
◆ OS_Switch()
| void OS_Switch | ( | void | ) |
Variable Documentation
◆ ptrCurrentFxnAddr
| pTaskFxn ptrCurrentFxnAddr |
