Alarm.h File Reference

Alarm management. More...

#include "Types.h"

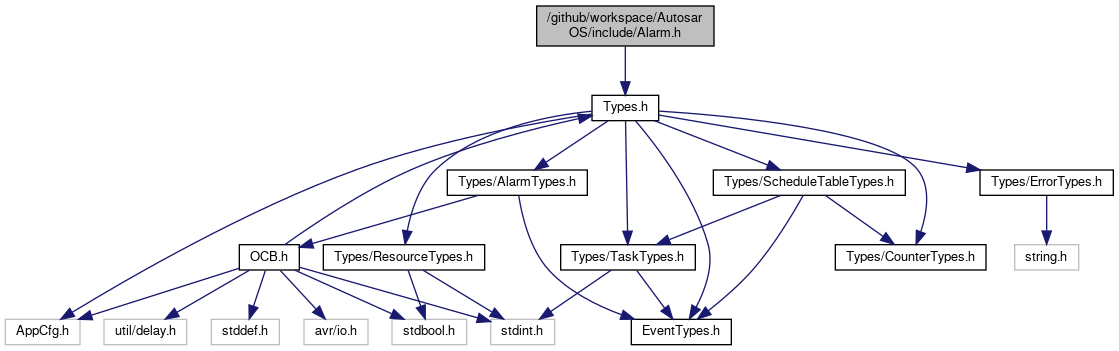

Include dependency graph for Alarm.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
StatusType	Alarm_GetAlarmBase (AlarmType alarmID, AlarmBaseRefType info)
	Get alarm base. More...
StatusType	Alarm_GetAlarm (AlarmType alarmID, TickRefType tick)
	Get alarm. More...
StatusType	Alarm_SetRelAlarm (AlarmType alarmID, TickType increment, TickType cycle)
	Set relative alarm. More...
StatusType	Alarm_SetAbsAlarm (AlarmType alarmID, TickType start, TickType cycle)
	Set absolute alarm. More...
StatusType	Alarm_CancelAlarm (AlarmType alarmID)
	Cancel alarm. More...
void	Alarm_evaluateAlarm (CounterType counter)
	Evaluate alarms with user generated counter. More...
void	Alarm_evaluateSysTickAlarm (void)
	Evaluate alarm with SYSTEM_COUNTER. More...
void	Alarm_startup (void)
	Startup function for alarm management. More...

Detailed Description

Alarm management.

Date

2020-06-15

Author

Pascal Romahn

Copyright

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

Definition in file Alarm.h.

Function Documentation

Alarm_CancelAlarm()

StatusType Alarm_CancelAlarm

(

AlarmType

alarmID

)

Cancel alarm.

Parameters

alarmID

Alarm to cancel

Returns

E_OK No error
E_OS_ID alarmID is invalid
E_OS_NOFUNC Alarm is not used

Definition at line 184 of file Alarm.c.

Alarm_evaluateAlarm()

void Alarm_evaluateAlarm

(

CounterType

counter

)

Evaluate alarms with user generated counter.

This will evaluate all alarms with a user generated counter and handle expiration if necessary.

counter may not equal SYSTEM_COUNTER. Alarm_evaluateSysTickAlarm() must be used instead.

Parameters

counter

ID of the counter that triggered the alarm evaluation

Definition at line 211 of file Alarm.c.

Here is the caller graph for this function:

Alarm_evaluateSysTickAlarm()

void Alarm_evaluateSysTickAlarm

(

void

)

Evaluate alarm with SYSTEM_COUNTER.

This will evaluate all alarms with the SYSTEM_COUNTER as their base and handle expiration if necessary.

Definition at line 235 of file Alarm.c.

Alarm_GetAlarm()

StatusType Alarm_GetAlarm	(	AlarmType	alarmID,
		TickRefType	tick
	)

Get alarm.

Get relative value in ticks before alarm expires.

Note

The value of tick is not defined if the alarm is not in use.

Parameters

alarmID	Alarm which remaining ticks should be read
tick	Pointer to write remaining ticks into

Returns

E_OK No error
E_OS_ID alarmID is invalid
E_OS_NOFUNC Alarm is not used
E_OS_PARAM_POINT Pointer parameter is invalid

Definition at line 60 of file Alarm.c.

Alarm_GetAlarmBase()

StatusType Alarm_GetAlarmBase	(	AlarmType	alarmID,
		AlarmBaseRefType	info
	)

Get alarm base.

This service will get a copy of the counter configuration used as the alarm base.

Parameters

alarmID	Alarm which base should be read
info	Pointer to copy base info into

Returns

E_OK No error
E_OS_ID alarmID is invalid
E_OS_PARAM_POINTER Pointer parameter is invalid

Definition at line 37 of file Alarm.c.

Here is the caller graph for this function:

Alarm_SetAbsAlarm()

StatusType Alarm_SetAbsAlarm	(	AlarmType	alarmID,
		TickType	start,
		TickType	cycle
	)

Set absolute alarm.

Set an absolute alarm. The alarm will expire once the base counter reaches the start value. If cycle does not equal zero the alarm will be restarted to expire in cycle ticks after it expires.

Parameters

alarmID	Alarm to set
start	Absolute value in ticks (must be between zero and maxallowedvalue of the base)
cycle	Cycle value for cyclic alarm (must be between mincycle and maxallowedvalue of the base)

Returns

E_OK No error
E_OS_ID alarmID is invalid
E_OS_STATE Alarm is already in use
E_OS_VALUE Values of increment or cycle are outside of the admissible range

Definition at line 139 of file Alarm.c.

Here is the caller graph for this function:

Alarm_SetRelAlarm()

StatusType Alarm_SetRelAlarm	(	AlarmType	alarmID,
		TickType	increment,
		TickType	cycle
	)

Set relative alarm.

Set a relative alarm. The alarm will expire in increment ticks. If cycle does not equal zero the alarm will be restarted to expire in cycle ticks after it expires.

Parameters

alarmID	Alarm to set
increment	Relative value in ticks (must be between one and maxallowedvalue of the base)
cycle	Cycle value for cyclic alarm (must be between mincycle and maxallowedvalue of the base)

Returns

E_OK No error
E_OS_ID alarmID is invalid
E_OS_STATE Alarm is already in use
E_OS_VALUE Values of increment or cycle are outside of the admissible range

Definition at line 103 of file Alarm.c.

Here is the call graph for this function:

Alarm_startup()

void Alarm_startup

(

void

)

Startup function for alarm management.

Definition at line 259 of file Alarm.c.
